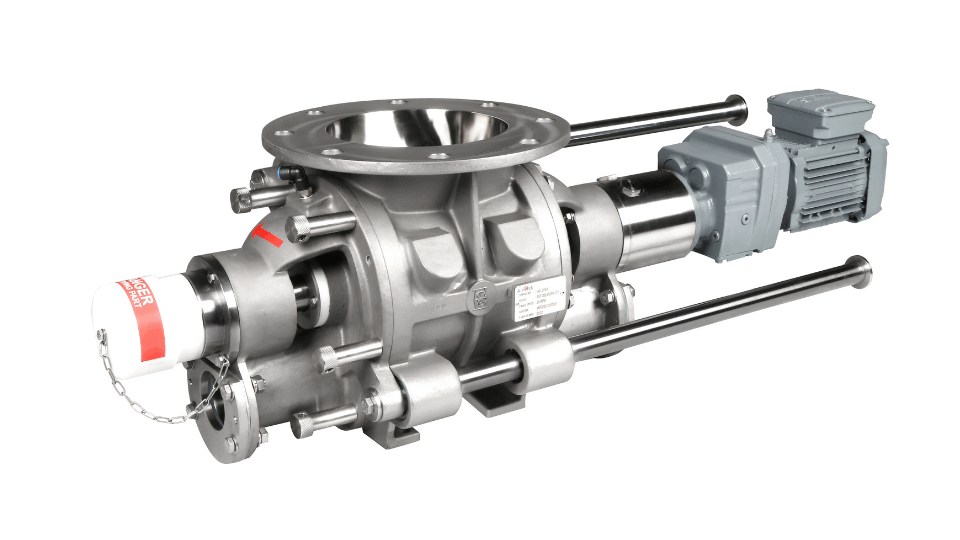

DCSR-2T rail valve
- Sanitary rotary valve
- 24/7 industrial applications
- Frequent cleaning and inspection
- Drop through (DT) or blow through (BT) version
- Protective system up to 3 barg (St1 and St2)
Sanitary applications
The dairy, food, pet food and pharmaceutical industries are full of processes that require regular cleaning. Consequently, easy inspection and quick access to the inside have become key features for rotary valves in these industries.
At TBMA we have extended and upgraded our range of slide rail rotary valves to meet the industries’ increasing demands. The new range of USDA Dairy Accepted and EHEDG compliant DCSR-2T slide rail valves perfectly match the highest standards in today’s process industry.
Curious how the valve is constructed? Check out the Video TBMA DCSR-2T rotary valve with guiding bars
Are you looking for a rotary valve? Use our Rotary Valve Specification Form as a guide to ask for a quotation and send it to sales@tbma.com. We will contact you asap.

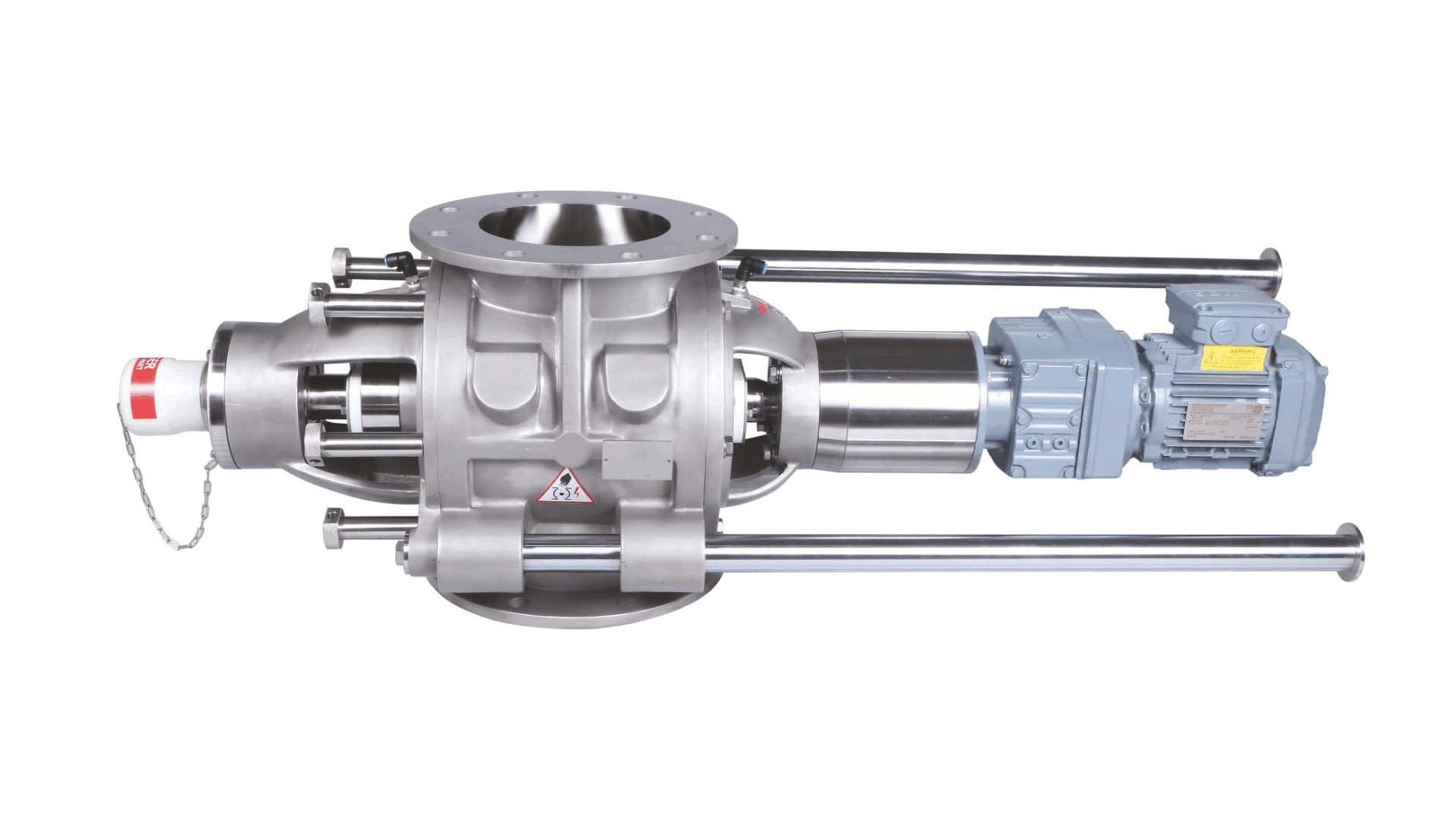

Unrivalled and unique design
The DCSR-2T USDA Dairy Accepted and EHEDG compliant slide rail rotary valves are the perfect fit for any sanitary application where prevention of product contamination is top of the list. The valves are available in drop through (DT) or blow through (BT) version and are equipped with a tapered rotor and body. This design ensures that at no point the rotor and body will come into contact while opening or closing the valve. Also, when extracted the rotor can be smoothly rotated for easy cleaning.
The clearances of the rotor are prefixed during manufacturing, so no special tools or techniques are needed for the clearance settings.
The DCSR-2T valves are supplied in stainless steel 316 and are standard equipped with an 8 bladed rotor with radiused u-shaped pockets. All product contact surfaces are standard polished to 0,8 µm, optional up to 0,4 µm.
DCSR-2T rotary valves are suitable for use in dairy, food, pet food, pharmaceutical and other dry bulk material handling industries.
Specifications
- Available sizes 150-350
- Rotor volume 2,5 up to 58 ltr/rev
- Drop-through or blow-through
- 10 bar pressure shock resistant
- ATEX compliant
- Operating temperature up to 150 °C
- Sanitary seals
- Air seal
Applications
- Dense or dilute phase pneumatic conveying
- Vacuum conveying
- Gravity feeding and metering
Options
- Air purge dairy
- Zero speed sensor
- Rotor Interference Sensor (RIS)
- High temperature version
Contact
Interested to learn more about the DT and BT DCSR-2T slide rail rotary valves? We love to tell you more. Contact us at sales@tbma.com
