GFD gravity diverter
- Diverting only into two or three lines
- In- and outlet round, square or rectangular
- For gravity applications only
Introduction

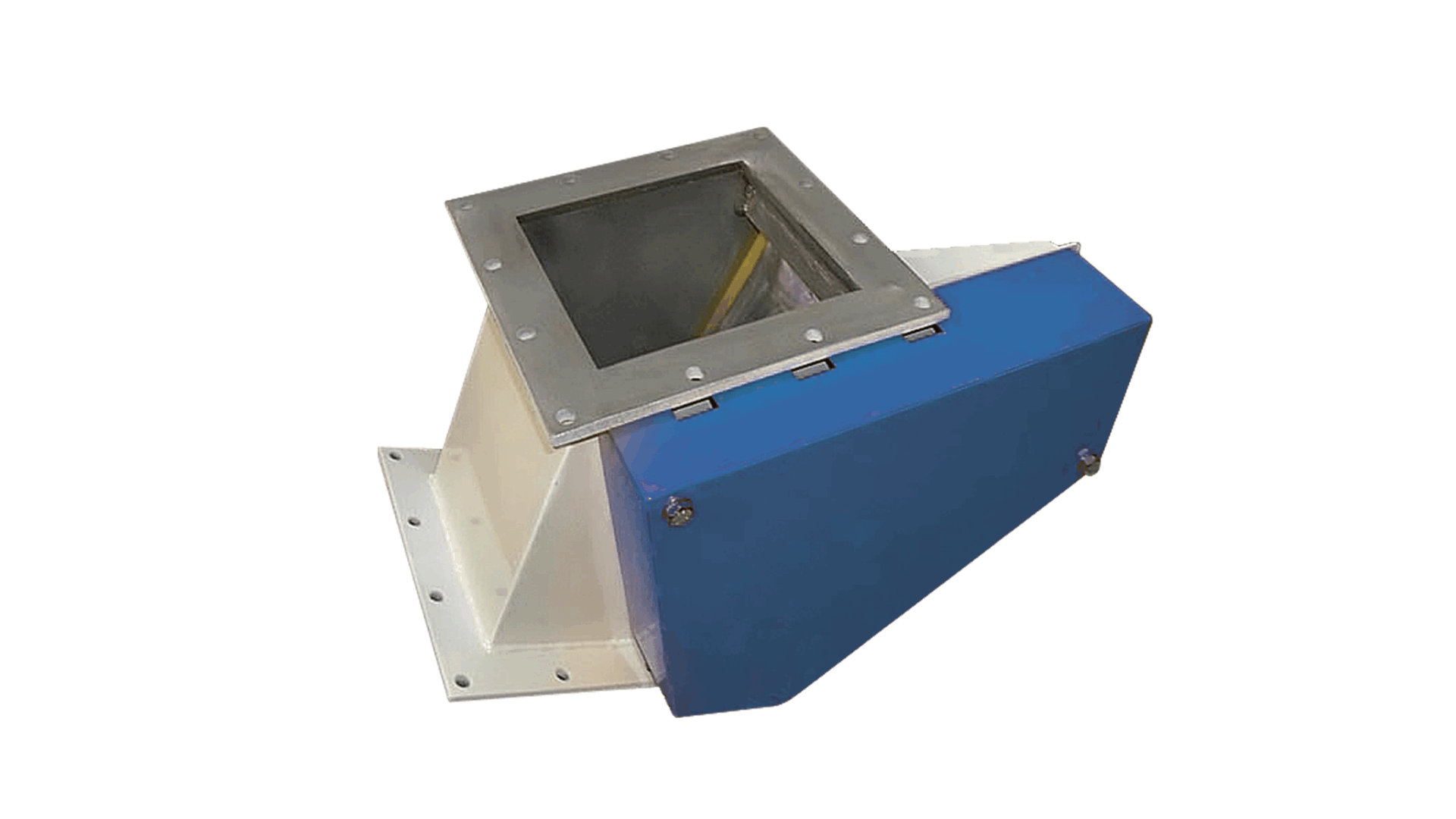

Free-fall gravity diverters are designed to divert powders and granules from one transport line to two or three others using gravity. The favourable change angle of 30° or 45° contributes to a fluent product flow and the smooth internal finish prevents product build-up.
The air cylinder is electro-pneumatically controlled by a 5/2-valve. The switch position is monitored by limit switches mounted to detect the open/closed position. The manual version is operated with a handle and is also provided with the before mentioned limit switches.
Applications
In brief
- Compact and robust construction made of mild steel
- Smooth line transition
- Easy disassembly and maintenance
- Various material versions
- Sealing flap made from polyurethane
- Manual or electro-pneumatic control in closed box with limit switches
Specifications
- Flange dimensions: 150 t/m 300 mm (4 sizes)
- Flanges: in- and outlet round, square or rectangular
- Outlet: 2- or 3-way routing
- Change angle: 30° or 45°
More info
